1500 mm - 100 mm M125Y structured packing in washing tower
1. 1500mm -100 mm layer height 125Y packing fast delivery
In our workshop, we produce large quantity of M125Y packing every day. The popular packing layer is 100mm, 150mm, and 200mm in height. We can make any size and any shape of the 125Y metal plate packing, as per customer requirement. We are near to the sea port and the shipping cost is relatively low. If needed, we can add fasten wires to strengthen the structure.
2. 1500mm -100 mm layer height 125Y packing characteristics
Stainless steel orifice corrugated packing is a number of corrugated plates pressed from stainless steel strip, which are vertically stacked and assembled into a disc-shaped structured packing according to the requirements of a certain diameter. The corrugations of the adjacent corrugated plates are inclined in the opposite direction, and the corrugations of the upper and lower adjacent packing plates are 90 ° crossed.
Before the corrugated plate is pressed, it is necessary to punch holes on the plate in advance and press the fine grain, or use the rolling grain equivalent to the fine grain.
Eight types of stainless steel orifice plate corrugated packing are listed in the table. The characteristic parameters of the type selection are the specific surface area of the packing and the angle of the corrugation, which can be selected according to the process design requirements.
3. 1500mm -100 mm layer height 125Y packing info
| Product | M125Y metal plate structured packing |
| Manufacturer | Metal Wire Mesh Co., Ltd. |
| Material | SS304, SS316L, 410s, etc. |
| Layer height | 100mm, 150mm, 200mm, etc. |
| Shape | Round, Square, Rectangular, Donut, etc. |
| Size | 50mm to any size |
4. 1500mm -100 mm layer height 125Y packing requirements
According to the requirements, punching, rolling fine grain (or rolling grain equivalent to fine grain) and corrugation of raw stainless steel belt shall be made into corrugation belt of orifice plate, and then the corrugation plate shall be cut into pieces according to different chord length on the cross section of packing plate and the requirements of packing plate assembly or block assembly.
The packing plate is composed of a number of corrugated plates arranged vertically and evenly. The corrugation angle of the two adjacent orifice plates is overlapped in the opposite direction.
According to the design of tower equipment, the packing plate can be made into a whole plate or block type. The purpose of block type is to facilitate the installation of packing. Each block size shall be able to enter the tower from the manhole for assembly. For towers with a diameter less than 800mm, they can be manufactured as a whole tray or into blocks.
The whole disc of packing shall be tightly clamped with steel belt, and the end of the hoop shall be lapped and spot welded to prevent the packing from deformation. After the upper hoop is installed, the upper edge shall be cut and reserved for the flanging before the packing is installed in the tower, and the hoop shall be made into the form of anti wall flow ring. For the block packing, the packing block close to the tower wall shall be made into the form of anti wall flow ring at the end close to the tower wall. The gap between the slits depends on the diameter of the tray, and it shall be close to the tower wall.

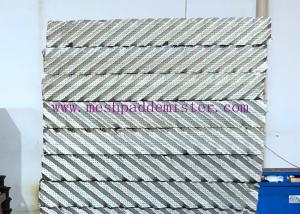

5. Stainless steel plate 125Y type structured packing picture
