Ss316l Tower Iso9001 Packing Pall Ring 50mm Surface Area

Certification : ISO9001

Place of Origin : China

MOQ : 0.01 cubic meters

Price : negociation

Payment Terms : L/C, T/T

Supply Ability : 99 cubic meters per month

Delivery Time : 5-9 days

Packaging Details : carton, bag, pallet

Product name : metal pall ring

Material : SS316L stainless steel

equal inch type : 1in, 2in, 3in, other

wall thickness : 0.5mm

Model number : HL20211012-10

Material certificate : Yes

data sheet : available

OEM : Yes

Usage : Tower packing Absorption

Application : Industry,absorption

Contact Now

SS316L 50mm Surface Area Tower Packing Stainless Steel Metal Pall Ring

Product Introduction

1	Metal pall packing is made of carbon steel,stainless steel, aluminum or other materials.
2	The product has features such as thin wall, heat resistant,high free volume, high capacity, low resistance, high separation efficiency and so on.
3	It is especially suitable for rectification towers under vacuum to treat thermosensitive, decomposable, polymerizable or cokable systems, so it is widely used in packing towers in petrochemical industry, chemical fertilizer industry and environmental protection, etc.

Ss316l Tower Iso9001 Packing Pall Ring 50mm Surface Area

50mm (2 inch) size pall ring specifications:

50mm Pall Rings
Free Space (%)	96
Specific Surface Area (m2/m3) 100
No. Per Unit Volume (m3 )	6,000
Packing Factor (m-1)	107
Specific Weight (kg/m3) 196 – 354 Stainless Steel
Dimensions (mm)	50 x 50
Thickness (mm)	0.5 – 0.9
Normal Material stainless steel 304, 316L

Technical Data of smaller sizes of metal pall rings:

16mm Pall Rings
Free Space (%)	93
Specific Surface Area (m2/m3) 316
No. Per Unit Volume (m3 )	210,000
Packing Factor (m-1)	315
Specific Weight (kg/m3) 400 – 535 Stainless Steel
Dimensions (mm)	16 x 16
Thickness (mm)	0.3 – 0.4
Normal Material stainless steel 304, 316L

25mm Pall Rings
Free Space (%)	94
Specific Surface Area (m2/m3) 209
No. Per Unit Volume (m3 )	49,500
Packing Factor (m-1)	176
Specific Weight (kg/m3) 322 – 644 Stainless Steel
Dimensions (mm)	25 x 25
Thickness (mm)	0.4 – 0.8

38mm Pall Rings
Free Space (%)	95
Specific Surface Area (m2/m3) 122
No. Per Unit Volume (m3 )	13,450
Packing Factor (m-1)	107
Specific Weight (kg/m3) 200 – 400 Stainless Steel
Dimensions (mm)	38 x 38
Thickness (mm)	0.4 – 0.8
Normal Material stainless steel 304, 316L

FEATURES of all sizes of pall rings:

Easily wettable

High resistance to fouling

High temperature endurable

High temperature applications

HIGH MECHANICAL STRENGTH

High capacity with low pressure drop

Mechanically robust, lesser probability of breakage

Good liquid/gas distribution and high mass transfer efficiency

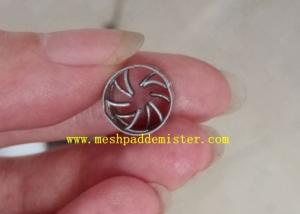

SS316L Metal pall rings in various sizes:

Ss316l Tower Iso9001 Packing Pall Ring 50mm Surface Area

Packing and Shipment

Plastic bag, Jumbo Bag, Wooden Case, Carton Box, On Pallet With PP Film Wrapped

Ss316l Tower Iso9001 Packing Pall Ring 50mm Surface Area

Product Tags:

ss316l packing pall ring

50mm packing pall ring

50mm metal pall ring
